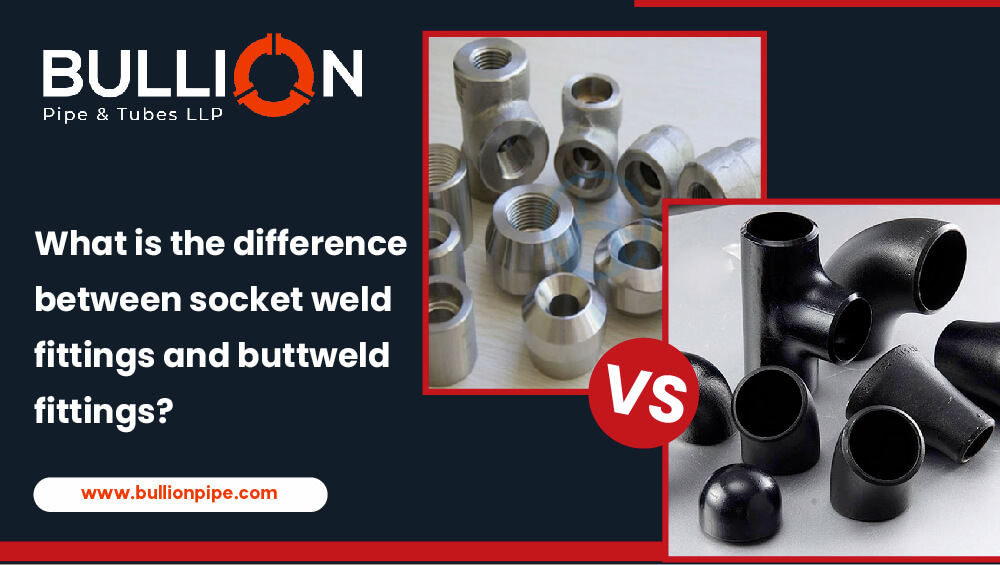

Pipe Fittings play a pivotal role in ensuring smooth operations, structural integrity, and fluid conveyance efficiency in piping and tubing systems. When it comes to the selection of suitable fittings, two common options emerge as front-runners: Socket Weld Fittings and Butt Weld Fittings. These fittings are the cornerstones of seamless piping systems, ensuring leak-free and efficient operations. At Bullion Pipes & Tubes LLP, India’s premier Pipe Fittings Manufacturer, Supplier, Stockist, and Exporter, we understand the significance of making an informed decision regarding these fittings to meet diverse project requirements. This article aims to provide a comprehensive understanding of the differences between socket weld fittings and buttweld fittings. Whether you’re working on a large-scale industrial project or a residential plumbing venture, choosing the right fitting is crucial.
Understanding Socket Weld Fittings
Socket weld fittings are a specific type of pipe connection designed for smaller pipes. These fittings consist of a socket or a recessed area at one end, into which the pipe is inserted. The connection is then secured by fillet welding around the socket’s perimeter. This welding creates a strong and leak-free joint, resulting in a seamless internal flow path without any internal crevices that could impede fluid flow or cause turbulence.
Key Features:
- Size Range: Typically used for pipe sizes ranging from 1/2 inch to 4 inches.
- Pressure Rating: Suited for high-pressure applications.
- Temperature Range: Ideal for elevated temperature environments.
- Connection Method: Pipes are inserted into the socket and then welded around the outside.
- Smooth Bore: Provides better flow characteristics and reduces the risk of turbulence.
On the Other Hand Buttweld Fittings
Butt weld fittings, in contrast, are designed to cater to larger pipes and higher-pressure applications. These fittings are connected through a process known as butt welding, where the pipe is aligned and welded to the fitting’s end. This welding technique ensures a sturdy joint that can withstand substantial pressure, making butt weld fittings an ideal choice for industries that operate under demanding conditions.
Key Features:
- High Strength: Butt weld fittings provide excellent strength and structural integrity.
- Pressure Rating: Can withstand high-pressure environments.
- Temperature Range: Excellent performance in both high and low-temperature scenarios.
- Connection Method: Ends are beveled and welded to achieve a solid joint.
- Strength and Reliability: Offers a strong and permanent connection, minimizing the risk of leakage.
Key Differences Between Socket Weld and Butt Weld Fittings
Joint Type and Strength:
- Socket Weld Fittings: The joint formed by socket weld fittings relies on fillet welding. While this results in a sturdy connection, it’s important to note that the joint strength might not be as high as that achieved through full penetration welding.
- Butt Weld Fittings: Butt weld fittings are characterized by their full penetration welding. This welding method creates a joint that boasts exceptional strength and integrity, making it highly suitable for heavy-duty applications and systems that encounter extreme pressures and stresses.
Applications:
- Socket Weld Fittings: Industries that demand leak prevention and secure connections often turn to socket weld fittings.
Sectors like
- Refineries
- Chemical Plants
- Steam Lines
- Oil and Gas Industry
- Water Treatment
- Shipbuilding
- High-pressure steam systems
- Many More
These fittings’ structural reliability and resistance to leakage.
- Butt Weld Fittings: In contrast, butt weld fittings find their niche in industries that prioritize smooth fluid flow.
Sectors such as
- food processing
- Pharmaceuticals
- Piping Systems
- Chemical and Petrochemical Plants
- Water Treatment Facilities
- Construction and Infrastructure
- Automotive Industry
- Gas distribution
- Many More
The seamless joints created by butt weld fittings minimize turbulence and clogging risks.
Size Range and Compatibility:
- Socket Weld Fittings: These fittings are typically available in smaller sizes, which align with their common usage in high-pressure systems with smaller pipes. However, it’s crucial to consider compatibility when connecting socket weld fittings to other types, as mismatches in size might pose challenges.
- Butt Weld Fittings: Butt weld fittings can accommodate larger pipes, which makes them a suitable choice for applications involving substantial fluid flow or heavy loads. Their versatility in terms of size offers more flexibility when dealing with a wide range of pipe dimensions.
Installation Challenges:
- Socket Weld Fittings: Installing socket weld fittings requires precision in aligning the pipe ends and executing the fillet weld. Skilled labor is essential to ensure that the joint is properly formed and that the welding is done correctly to maintain the fittings’ leak-resistant properties.
- Butt Weld Fittings: While butt weld fittings offer robust connections and superior joint integrity, their installation process is more intricate. The pipe ends need to be accurately beveled, and the welding process demands meticulous execution by skilled welders to ensure the joint’s strength and integrity.
Long-Term Maintenance:
- Socket Weld Fittings: Due to their fillet weld joint, socket weld fittings might require a more frequent inspection to ensure the integrity of the joint and prevent potential leaks.
- Butt Weld Fittings: Butt weld fittings, with their full penetration welds, tend to require less maintenance over time due to their seamless and strong joints. However, regular monitoring is still essential to address any potential issues.
Choosing the Right Fitting for Your Project
Selecting the appropriate fitting for your project involves a careful evaluation of factors such as pressure, temperature, fluid characteristics, and industry regulations. Consulting relevant industry standards and seeking expert advice can guide you toward the optimal choice. At Bullion Pipes & Tubes LLP, we provide an extensive range of socket weld and buttweld fittings, catering to diverse project needs. Whether it’s a large-scale industrial endeavor or a residential plumbing solution, making an informed decision ensures the long-term success of your project.
Final Thoughts!
Pipe fittings come in both socket weld and butt weld types, each serving a unique purpose in different industrial settings. The choice between the two depends on factors such as pressure, temperature, joint strength, and the overall application requirements. As a leading Pipe Fittings Manufacturer, Supplier, Stockist, and Exporter in India, Bullion Pipes & Tubes LLP provides a wide range of socket weld fittings, butt weld fittings, and other pipe fittings to meet diverse project needs. Whether it’s the high-pressure efficiency of socket weld fittings or the structural integrity of butt weld fittings, understanding the differences ensures the right choice for a successful pipeline system.
